Compact, take-anywhere size. Appealing all-metal body. Record up to 22 hours of dictation or a full hour of MP3 or WMA music with superb stereo sound. Comes with docking station for quick downloading of files and a convenient residence for your DM-10 when not in use. Stereo voice recording is possible with an optional stereo microphone

Features & Benefits
Voice recorder and music recorder/player all in one.
Supports DSS, MP3 and WMA file formats.
64MB(1) of built-in internal memory for 22 hours of voice recording or an hour of music.
Stereo recording and playback.
USB Docking Station for quick, easy uploads and downloads.
PC and Mac® compatible.
Noise Cancellation mode reduces ambient sound for improved clarity.
WOWTM audio technology provides rich bass and 3-dimensional stereo sound during music playback.
Manage your voice files in 5 folders and music files in 2 folders capable of storing up to 199 files in each.
SHQ, HQ, SP and LP modes provide recording flexibility.
Voice activation.
Index marking.
Large, backlit LCD.
Compact for comfort.
Attractive design.
Metal body for remarkable durability.

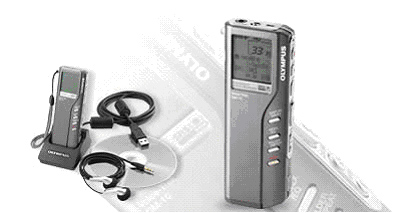

Comes with USB docking station and cable, earphones (stereo), Windows® Media Player 9 (Windows only), DSS Player software (Windows and Mac) and more.

Package Contents
DM-10 Digital Voice Recorder
USB Docking Station
USB Cable
Strap
Stereo Earphones
Stereo Microphone
DSS Player Software CD
Instruction Manual
2 x AAA batteries

DM-10 Specifications
Recording Format DSS (Digital Speech Standard)/WMA (Windows Media Audio)
Recording Media 64MB integrated flash memory.
Recording Time SHQ mode: 2 hours 10 minutes
HQ mode: 4 hours 20 minutes
SP mode: 10 hours 25 minutes
LP mode: 22 hours 20 minutes
Card Format n/a
Input Level -70 dBv
PC Interface USB
LCD Large backlit full dot display
LED n/a
Folders Messages 5 folders
Sampling Frequency SHQ mode: 44.1 kHz
HQ mode: 44.1 kHz
SP mode: 12 kHz
LP mode: 8 kHz
Overall Frequency Response SHQ mode: 300 to 8,000 Hz
HQ mode: 300 to 7,000 Hz
SP mode: 300 to 5,000 Hz
LP mode: 300 to 3,000 Hz
LP Mode yes
Voice Activation yes
Demographic Data Input
Practical Maximum Output
Write Protection
Speaker Built-in ø23 mm round dynamic speaker.
Microphone Jack ø3.5 mm mini-jack, impedance MIC 2 kW , EAR 8W or more
Earphone Jack ø3.5 mm mini-jack, impedance MIC 2 kW , EAR 8W or more
Power Supply Rated Voltage: 3V DC
Batteries: Two AAA
External Power Supply: AC Adapter
Batteries Two AAA Alkaline batteries (LR03 or R03) or Two AAA Ni-MH batteries
External Power Supply AC adapter
Battery Life Voice Recording: Alkaline
Recording: Approx. 16 hours
Playback: Approx. 9 hours (based on our standard testing procedure)
Voice Recording: NiMH
Recording: Approx. 12 hours
Playback: Approx. 8 hours (based on our standard testing procedure)
Music Player: Alkaline (Approx. 10 hours)
NiMH (Approx. 8 hours - based on our standard testing procedure)
Size 109.5 x 39.5 x 15 mm (without protrusions)
Weight 85g (including batteries)
OS Supported Windows: Windows 98, 98SE, ME, 2000 Professional, XP Professional, Home Edition
Mac: Mac OS 9.0/9.1/9.2/10.1/10.2
CPU Intel Pentium II class 333 MHz processor or higher
RAM PC: 64MB or more
Mac: 16MB or more
Sound Board Creative Labs Sound Blaster 16 or 100% compatible sound card
Video Card and Display 800 x 600 pixel or more, 256 colours or more
Removable Drive 2x or faster
USB Port one free port
Audio Output PC: earphone (or speaker) output
Mac: Microphone input or earphone (or speaker) output
(1) 1 megabyte = 1 million bytes; actual formatted capacity less.
