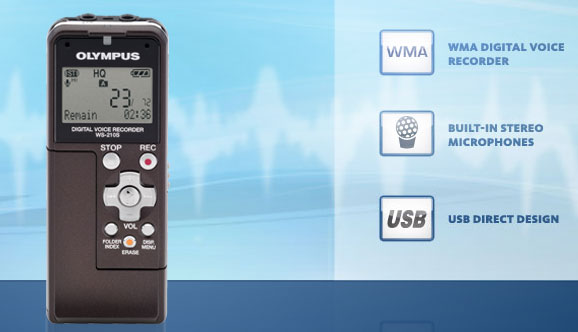

WS-210S Digital Voice Recorder

Easy operation and superior audio in a stylish package. Easily record lectures, notes and more in high-quality stereo sound with the compact, stylish WS-210S. Store and organize your files on the WS-210S, and transfer them to your PC with the easy-to-use "USB Direct" design. Simply plug the recorder into a computer, with no USB cable necessary, for easy downloading of audio files, documents, image files and more!

138 HOURS RECORDING TIME. You'll never be hindered from recording audio, notes, lectures and more with an amazing 138 hours of available recording time. DIRECT PC LINK. Nothing is easier than plugging right into the USB port on a computer to quickly download or upload files with the WS-210S's cool "USB Direct" design. BUILT-IN STEREO MICROPHONES. Personal notes, school lectures, business-related meetings and music galore, everything sounds great in clear stereo sound from the built-in stereo microphones.

Features & Benefits

Record

• Built-in stereo microphones.
• 512MB internal flash memory.
• WMA recording format.
• 138 hours of recording time in LP mode.
• Six recording modes: use STXQ, STHQ and STSP for stereo recording or HQ, LP and SP for extended recording.
• Low Cut Filter minimizes low frequency sounds, such as air conditioner background noise, when recording.
• Variable Control Voice Activator (VCVA) records only when sound is sensed.
• Long-life battery lasts for 19 hours of continuous operation.

Organize

• Five file folders, each holding up to 200 files, provide unparalleled organization.
• Up to 16 index marks can be set in a file.
• As a USB storage device, the WS-210S can store a variety of files in addition to audio files.
• Lock files to avoid files being accidentally erased.

Connect

• "USB Direct" design provides easy connection to a PC.
• High-speed USB 2.0 provides fast download times.

Playback

• Voice Filter enhances the human voice by cutting low and high frequency noises during playback.
• Slow and fast playback speed variations.

Package Contents

• WS-210S WMA Digital Voice Recorder

• Stereo Earphones

• Instruction Manual

Specifications

Recording Format	WMA (Windows Media Audio)
Recording Media	Built-in 512 MB flash memory
Recording Time	Stereo XQ Mode: 8 hours, 50 minutes Stereo HQ Mode: 17 hours, 40 minutes Stereo SP Mode: 35 hours, 25 minutes HQ Mode: 35 hours 25 minutes SP Mode: 69 hours 40 minutes LP Mode: 138 hours 30 minutes
Card Format	N/A
Input Level	-70 dBv
PC Interface	USB direct, full speed
LCD	26 x 17 mm
LED	Record/playback: red (record), green (playback) USB data access: red (data transfer)
Folders Messages	5 folders/200 messages per folder
Sampling Frequency	Stereo XQ Mode: 44.1 kHz Stereo HQ Mode: 44.1 kHz Stereo SP Mode: 22.0 kHz HQ Mode:44.1kHz SP Mode: 22.0kHz LP Mode: 8.0kHz
Overall Frequency Response	Stereo XQ Mode: 150-17,000Hz Stereo HQ Mode: 150-15,000 Hz Stereo SP Mode: 150-9,000Hz HQ Mode:150-13,000Hz SP Mode: 150-7,000Hz LP Mode: 150-3,000Hz
LP Mode	Yes
Voice Activation	Available via menu selection
Demographic Data Input	N/A
Practical Maximum Output	70 mW
Write Protection	N/A
Speaker	Built-in 16 mm round dynamic speaker
Microphone Jack	3.5 mm mini-jack, impedance 2 kohms
Earphone Jack	3.5 mm mini-jack, impedance 8 ohms
Power Supply	One AAA battery
External Power Supply	N/A
Battery Life	Alkaline      Stereo XQ Mode: Approximately 13 hours      Stereo HQ Mode: Approximately 14 hours      Stereo SP Mode: Approximately 15 hours      HQ Mode: Approximately 16 hours      SP Mode: Approximately 17 hours      LP Mode: Approximately 19 hours NiMH (BR-401):      Stereo XQ Mode: Approximately 11 hours      Stereo HQ Mode: Approximately 12 hours      Stereo SP Mode: Approximately 12 hours      HQ Mode: Approximately 14 hours      SP Mode: Approximately 14 hours      LP Mode: Approximately 16 hours
Size	3.75" L x 1.5" W x 0.4" D (94.7 x 37.0 x 10.0 mm), excluding protrusions
Weight	1.7 oz. (47g), including battery
OS Supported	Microsoft Windows 2000/XP/Vista
CPU	N/A
RAM	N/A
Sound Board	N/A
Video Card and Display	N/A
Removable Drive	N/A
USB Port	One free port
Audio Output	N/A

^
