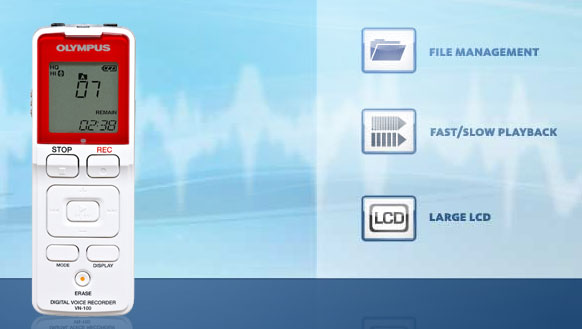

VN-100 Digital Voice Recorder

This slim and newly designed recorder is sleek in style and powerful in performance with nearly 75 hours of continuous recording capability. The larger, easy-to-use buttons make for quick and convenient operation of functions like file management, choosing playback and recording modes. Fast and slow playback help find important parts of your files quickly.

74 HOURS 40 MINUTES RECORDING TIME. With nearly 4,500 minutes of continuous recording time in LP mode, the recorders lets you capture it all with 128MB of internal flash memory. SIMPLE FILE MANAGEMENT. With one folder holding up to 100 files, you can quickly find the files you need. This recorder defines easy-to-use. FAST AND SLOW PLAYBACK. Find specific components of your recordings with the fast and slow playback function.

Features & Benefits

• Record up to 74 hours and 40 minutes of uninterrupted audio in LP mode.
• Select from two recording modes to meet your specific needs: SP and LP for extended recording.
• Large LCD for easy, quick viewing of file locations, recording status and battery life.
• Certified as an Olympus Eco-product, this voice recorder has a reduced environmental footprint across its entire product lifecycle, which encompasses not only the product and its packaging, but also the manufacturing and logistical processes in bringing the product to the marketplace.
• Slow and Fast Playback modes let you listen to audio 25 percent slower or 50 percent faster than real time.
• Easy operation with one folder storing up to 100 files.
• Long 35 hours of battery life.

Package Contents

• VN-100 Recorder
• Instruction Manual
• Warranty Card






Specifications

Recording Format	Multi Codec - SP: SubBand, LP: CELP
Recording Media	Built-in 128 MB flash memory
Recording Time	SP mode: Approximately 13 hours, 20 minutes LP mode: Approximately 74 hours, 40 minutes
LCD	24 mm x 24 mm
LED	Two colors (red = record; green = playback)
Folders Messages	1/100 per folder
Sampling Frequency	SP: 10.6 kHz LP: 6.6 kHz
Overall Frequency Response	SP: 300-4,700 Hz LP: 300-2,900 Hz
LP Mode	Yes
Voice Activation	No
Practical Maximum Output	120 mW
Speaker	28 mm round dynamic speaker
Microphone Jack	3.5 mm mini-jack, impedance 2k ohms
Earphone Jack	3.5 mm mini-jack, impedance 8 ohms
Power Supply	Two AAA alkaline (LR03 or R03) batteries or two AAA NiMH rechargeable batteries
Batteries	Two AAA alkaline batteries
External Power Supply	N/A
Battery Life	Alkaline: Approximately 39 hours NiMH: Approximately 22 hours
Size	4.0 x 1.4 x 0.8 in. (102 x 36 x 20.5 mm)
Weight	2.2 oz. (63 g), including batteries

^
