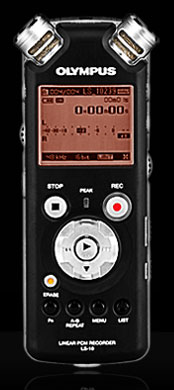

LS-10 Linear PCM Recorder   Studio-Grade Recording to Go. Combining the advanced technologies derived from Olympus' decades of experience in the recording field, the compact and portable LS-10 brings you high-fidelity sound recording that's ideal for everything from live music to the singing of birds. The LS-10: unparalleled sound quality, anytime, anywhere.

24 BIT/ 96 KHZ LINEAR PCM RECORDING. Whether you’re in the recording studio or at the office, the LS-10 will let you Capture It All™ -- exactly as you hear it -- with dependable, extra-high-quality digital recording that sounds better than a CD. UP TO 12 HOURS OF RECORDING CAPABILITY – 2GB BUILT-IN MEMORY AND SD SLOT. The 2GB built-in flash memory assures immediate recording, while the SD slot allows for expanded capacity. Long battery life allows you to record music, performances or lectures up to 12 hours with two AA batteries, so you can spend less time worrying about recharging or replacing batteries. THREE RECORDING FORMATS: WAV, MP3 & WMA. The LS-10 makes it easy to record audio and play back the files in the format of your choice. With three compatible file formats, the LS-10 offers impressive versatility and enables longer recording capacity.

~ Features & Benefits ~

	24 bit/ 96 kHz linear PCM recording. Capture It All™ -- exactly as you hear it -- with dependable, extra-high-quality digital recording that sounds better than a CD.
	Multiple recording formats: WAV, MP3, and WMA. Record and playback in the format of your choice. With three compatible formats, the LS-10 offers more versatility and enables expanded recording capacity.
	High-sensitivity microphones and high-quality microphone amplifier circuitry. Built-in high-sensitivity and low-noise stereo microphones capture every detail and nuance. The microphone amplifier circuitry is carefully designed to reduce interference for ultimate sound clarity.

~ Specifications ~

Model	LS-10 Linear PCM Recorder
Recording Format	Linear PCM (Pulsed Code Modulation) WAVE
	MP3 (MPEG-1/MPEG-2 Audio Layer 3)
	WMA (Windows Media Audio)
Recording Media	Built-in 2 GB NAND Flash memory
	SD Card (512 MB to 8 GB)
Recording Time	Built-in 2 GB memory
	Linear PCM: Up to 3 hours 10 minutes
	MP3: Up to 35 hours 35 minutes
	WMA: Up to 69 hours 35 minutes
Card Format	SD, SDHC
Input Level	MIC SENSE HIGH –59 dBv
	MIC SENSE LOW –39 dBv
	LINE IN jack input –6 dBv
PC Interface	USB
LCD	35 x 29 mm
LED	1 color (red)
Folder Messages	5 folders, 200 messages per folder, plus MUSIC folder
Speaker	2 16mm round dynamic speakers, 8 ohms, 200 mW output
MIC Jack	3.5mm stereo mini-jack, impedance 2 kohms
LINE IN Jack	3.5mm stereo mini-jack, impedance 2 kohms
EAR Jack	3.5mm stereo mini-jack, impedance 8 ohms
Maximum Headphone Output	3 mW per channel at a load of 16 ohms
Batteries	2 AA Alkaline, Lithium, or NiMH batteries
External Power Supply	Olympus D-7AC AC Adapter
Size	131.5 mm x 48 mm x 22.4 mm (without protrusions)
Weight	165 grams (including alkaline batteries)
OS Supported	Windows: 2000/XP/VISTA
	Macintosh: Mac OS 10.2 or later
CPU and RAM	Windows: Intel Pentium or AMD Athlon 1.4 GHz processor, 512 MB RAM
	Macintosh: Power Mac G4 1 GHz or Core Solo 1.5 GHz, 512 MB RAM
Sound Board	Windows: Windows DirectX compatible, ASIO compatible sound card recommended for low latency performance
	Macintosh: Core Audio compatible audio hardware
Removable drive	DVD-ROM drive required for installation of Steinberg Cubase LE4 software
Video Card and Display	1024 x 768 pixels, 256 color or more
USB Port	One free port
Audio Output	Earphone output or speakers

^
