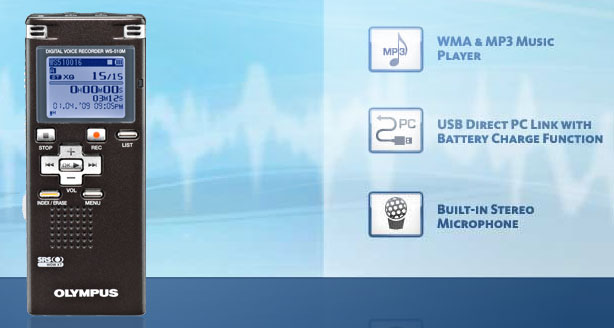

WS-510M Digital Voice Recorder

Stay organized and entertained with this powerful digital recorder. Record meetings or notes and even store documents on this high-class storage device and remarkable music player. Easily transfer files with the USB input that lets you plug the WS-510M right into the computer for fast results. Up to 1,000 songs can be stored and played in impressive stereo sound, with track and artist name clearly displayed on the LCD.

1,088 HOURS OF RECORDING TIME. With 4GB of internal memory and 1,088 hours of recording time, you’ll be able to capture notes, lectures, and more – and still have room to store documents. DIRECT PC LINK. With the "USB Direct" design, it is easy to transfer your files to your PC. Just plug the recorder right into your computer for fast file transfer – no cables needed. MUSIC PLAYER. Store and listen to up to 1,000 songs on the go. Have your music readily available wherever and whenever you are. BUILT-IN STEREO MICROPHONES. Extend recording time and save memory by setting the device to only record when the microphones sense sound. BATTERY CHARGE FUNCTION. Experience long battery life with the included rechargeable battery. When the recorder is plugged into the computer, it will automatically recharge your battery

Features & Benefits

• Supports music files in MP3 and WMA formats.
• The WS-510M has 4GB of internal flash memory.
• Enjoy 1,088 hours of recording time.
• The unique "USB Direct" design means you can connect it right to the USB port on your computer and download or transfer audio, music, photos and more.
• Built-in stereo microphone.
• Use the Voice Activation mode to record sound, via the built-in microphone, without ever lifting a finger.
• Organize up to 200 files in each of five available folders for quick retrieval and storage convenience.
• The LCD supports and displays three languages.
• Up to 21 hours of continuous operation with only one AAA battery.
• Records 1,088 hrs
• USB Direct design
• Built-in Stereo Mic

Package Contents

• WS-510M Digital Voice Recorder
• AAA Ni-MH Rechargeable Battery
• Earphone
• USB Cable
• Case
• Instruction Manual
• Warranty Card





Specifications

Recording Format	WMA (Windows Media Audio)
Recording Media	Built-in 4GB flash memory
Recording Time	Stereo XQ Mode: 69 hours, 30 minutes Stereo HQ Mode: 139 hours, 35 minutes Stereo SP Mode: 278 hours, 10 minutes HQ Mode: 278 hours 10 minutes SP Mode: 547 hours 25 minutes LP Mode: 1,088 hours 05 minutes
Card Format	N/A
Input Level	-70 dBv
PC Interface	USB direct, Hi speed
LCD	1.23 inch
LED	Yes
Folders Messages	5 folders/200 messages per folder
Sampling Frequency	Stereo XQ Mode: 44.1 kHz Stereo HQ Mode: 44.1 kHz Stereo SP Mode: 22.0 kHz HQ Mode:44.1kHz SP Mode: 22.0kHz LP Mode: 8.0kHz
Overall Frequency Response	Stereo XQ Mode: 50-19,000Hz Stereo HQ Mode: 50-15,000 Hz Stereo SP Mode: 50-9,000Hz HQ Mode:50-13,000Hz SP Mode: 100-7,000Hz LP Mode:100-3,000Hz
LP Mode	Yes
Voice Activation	Yes
Demographic Data Input	N/A
Practical Maximum Output	70 mW
Write Protection	Yes
Speaker	Built-in 16 mm round dynamic speaker
Microphone Jack	Yes
Earphone Jack	Yes
Power Supply	One AAA battery (Ni-MH is chargeable via USB)
External Power Supply	N/A
Battery Life	21 hours (Alkaline, LP mode recording)
Size	3.7" L x 1.5" W x 0.4" D (94.8 x 38.0 x 11.0 mm), excluding protrusions
Weight	1.6 oz. (46g), including battery
OS Supported	Microsoft Windows 2000/XP/Vista Mac OS X 10.2.8 - 10.5
CPU	N/A
RAM	N/A
Sound Board	N/A
Video Card and Display	N/A
Removable Drive	N/A
USB Port	One free port
Audio Output	N/A

^
