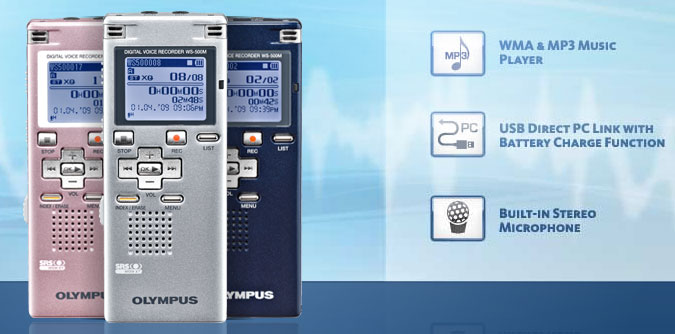

WS-500M Digital Voice Recorder

Record meetings, store files, and listen to music with one device. Stay organized on the move with this high-class storage device and powerful music player. Transfer meetings or notes and even large documents to your PC with the easy-to-use USB input. The WS-500M is designed to be plugged directly into your computer for fast file transfer. With 2GB of internal memory, store up to 500 songs and listen to them in impressive stereo sound with track and artist name clearly displayed on the LCD.

545 HOURS RECORDING TIME. With 2GB of internal memory and 545 hours of recording time, you’ll be able to capture notes, lectures, and more – and still have room to store documents. DIRECT PC LINK. With the "USB Direct" design, it is easy to transfer your files over to your PC. Just plug the recorder right into your computer for fast downloads – no cables needed. MUSIC PLAYER. Store and listen to up to 500 songs in impressive stereo sound. Have your music readily available wherever and whenever you are. BUILT-IN STEREO MICROPHONES. Stereo microphones allow you to easily capture high-quality sound with no effort. From personal notes to music, everything sounds great. BATTERY CHARGE FUNCTION. Experience long battery life with the included rechargeable battery. When the recorder is plugged into the computer it will automatically recharge your battery

Features & Benefits

• Supports music files in MP3 and WMA formats.
• The WS-500M has 2GB of internal flash memory.
• Enjoy an amazing 545 hours of recording time.
• The unique "USB Direct" design means you can connect it right to the USB port on your computer and download or transfer audio, music, photos and more.
• Built-in stereo microphone.
• Use the Voice Activation mode to record sound, via the built-in microphone, without ever lifting a finger.
• Organize up to 200 files in each of five available folders for quick retrieval and storage convenience.
• The LCD supports and displays three languages.
• Up to 21 hours of continuous operation with only one AAA battery.
• Records 545 hrs
• USB Direct design
• Built-in Stereo Mic

  * Windows only

Package Contents

• WS-500M Digital Voice Recorder
• AAA Ni-MH Rechargeable Battery
• Earphone
• USB Cable
• Instruction Manual
• Warranty Card




Specifications

Recording Format	WMA (Windows Media Audio)
Recording Media	Built-in 2GB flash memory
Recording Time	Stereo XQ Mode: 34 hours, 50 minutes Stereo HQ Mode: 69 hours, 40 minutes Stereo SP Mode: 139 hours, 25 minutes HQ Mode: 139 hours 25 minutes SP Mode: 274 hours 10 minutes LP Mode: 544 hours 55 minutes
Card Format	N/A
Input Level	-70 dBv
PC Interface	USB direct, Hi speed
LCD	1.23 inch
LED	Yes
Folders Messages	5 folders/200 messages per folder
Sampling Frequency	Stereo XQ Mode: 44.1 kHz Stereo HQ Mode: 44.1 kHz Stereo SP Mode: 22.0 kHz HQ Mode:44.1 kHz SP Mode: 22.0kHz LP Mode: 8.0kHz
Overall Frequency Response	Stereo XQ Mode: 50-19,000Hz Stereo HQ Mode: 50-15,000 Hz Stereo SP Mode: 50-9,000Hz HQ Mode:50-13,000Hz SP Mode: 100-7,000Hz LP Mode:100-3,000Hz
LP Mode	Yes
Voice Activation	Yes
Demographic Data Input	N/A
Practical Maximum Output	70 mW
Write Protection	Yes
Speaker	Built-in 16 mm round dynamic speaker
Microphone Jack	Yes
Earphone Jack	Yes
Power Supply	One AAA battery (Ni-MH is chargeable via USB)
External Power Supply	N/A
Battery Life	21 hours (Alkaline, LP mode recording)
Size	3.7" L x 1.5" W x 0.4" D (94.8 x 38.0 x 11.0 mm), excluding protrusions
Weight	1.6 oz. (46g), including battery
OS Supported	Microsoft Windows 2000/XP/Vista Mac OS X 10.2.8 - 10.5
CPU	N/A
RAM	N/A
Sound Board	N/A
Video Card and Display	N/A
Removable Drive	N/A
USB Port	One free port
Audio Output	N/A

^
