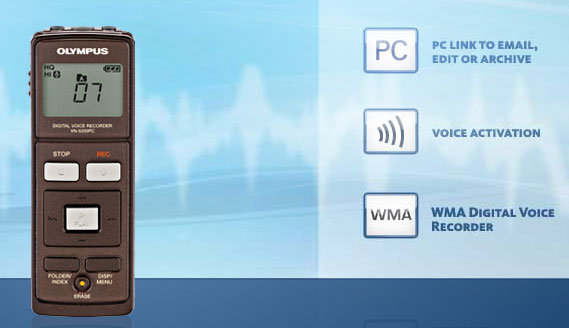

VN-5200PC Digital Voice Recorder

It listens to you, then talks to your PC. Through its PC link, the VN-5200 PC lets you transfer files from your voice recorder right to your computer—using one transfer cable connection. Now you can upload, organize, listen to and even e-mail your voice recordings with ease. The VN-5200 PC is the most affordable WMA-compatible recorder available.

PC LINK. Uploads files directly to your PC using a simple cable connection. WINDOWS MEDIA AUDIO. Enables high quality recording, no additional software required. USB 2.0 PORT. Allows high speed, mass storage of files and fast transfers to your PC. RECORDING MODES. Lets you select standard playback (SP), long playback (LP) or high quality (HQ) mode.

Features & Benefits

• Voice activation extends recording time by recording only when the microphone senses sound.
• Record up to 221 hours and 30 minutes of uninterrupted audio in LP mode.
• Transfer audio files quickly and easily to a computer with the convenient PC link.
• Index marks let you specify a particular point in a recording or playback for easy retrieval.
• Select from three recording modes to meet your specific needs: HQ for high quality; SP and LP for extended recording.
• Large LCD for easy, quick viewing of file locations, recording status and battery life.
• Slow and Fast Playback modes let you listen to audio 25 percent slower or 50 percent faster than real time.
• Contains five folders that each hold up to 200 files.

Package Contents

• VN-5200 PC Recorder
• Instructional Manual
• USB Cable
• Warranty Card
• 2 x AAA Batteries








Specifications

Recording Format	WMA (Windows Media Audio)
Recording Media	Built-in 512 MB flash memory
Recording Time	HQ mode: Approximately 35 hours, 20 minutes SP mode: Approximately 69 hours, 35 minutes LP mode: Approximately 221 hours, 30 minutes
PC Interface	USB
LED	Two colors (red = record; green = playback)
Folders Messages	5 / 200 per folder
Sampling Frequency	HQ: 44.1 kHz SP: 22 kHz LP: 8 kHz
Overall Frequency Response	HQ: 200-13,000 Hz SP: 200-7,000 Hz LP: 200-3,000 Hz
LP Mode	Yes
Voice Activation	Yes
Practical Maximum Output	250 mW
Speaker	23 mm round dynamic speaker
Microphone Jack	3.5 mm mini-jack, impedance 2 kOhm
Earphone Jack	3.5 mm mini-jack, impedance 8 ohms
Power Supply	Two AAA alkaline (LR03 or R03) batteries or Two AAA NiMH rechargeable batteries
Batteries	Two AAA alkaline batteries
Battery Life	Alkaline: Approximately 37 hours; NiMH: Approximately 25 hours
Size	4.0 x 1.5 x 0.7 in. (102 x 37 x 18.8 mm)
Weight	2.3 oz. (64.8 g), including batteries
OS Supported	Microsoft Windows 2000/XP/Vista (Standard Installation) Macintosh Mac OS X 10.2.8 "Jaguar" ~ 10.5 "Leopard" (Standard Installation)
USB Port	At least one free USB port
Audio Output	Speaker or earphone output

^
