"Now you can record audio and digital stills
together"
The remarkable new W-10 gives you the ability
to record audio and visual images at the same time. It's an efficient
investigative tool for both federal and state law enforcement agencies. The
user can record an interview along with the persons face. Or perhaps you
may want to record notes of an investigation while taking pictures of evidence
or a crime scene. The W-10 enables the investigator to record up to 3 hours
of audio, 250 pictures or a combination of both. Auto-Connect USB. Three
file folders, and many more useful features and functions including the
capability of emailing images and audio files to other departments. At
a low government price the W-10 is an indispensable and valuable investigation
tool for every agent. Contact us for Special
Government Pricing.
Extremely Small Size:
4.7" H x 1.2" W x 0.8" D |
 |

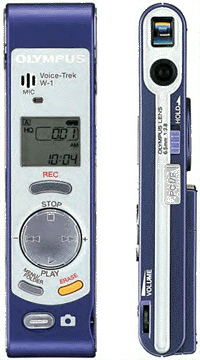

Features of the SME Olympus W-10
Versatile Visual Indexing You can actually take a picture of the person
whose voice you're recording, and when you play the file on your PC, you
can see who said what. Or back up your verbal notes with digital images with
record time/date stamp .
Voice Album Software. The included software
lets the investigator to create slide shows with narration. Perfect for creating
case reviews.
3-Hour Capacity 16 MB of built-in memory
allows for up to 3 hours of uninterrupted recording.
Auto-Connect USB connects easily to almost
any PC with a USB port, no software required.
Easy Thumb Pad Control Comfortable, intuitive
thumb pad makes for easy navigation, recording and playback
Voice Activation Create efficient recordings
with Variable Control Voice Actuator (VCVA) with high/low sensitivity
selector.
Convenient File Management erase single
files or entire folders and move files from one folder to another.
Easily.
Sleek, Slim Design The W-10 fits comfortably
in your hand, and easily in your pocket.
Standard File Formats Download the WAV
audio files and 640 x 480 JPEG images for use in a variety of
applications.
W-10 Audio Specifications
Recording Format: Digital recording in accordance with ADPCM (WAV
format)
Recording Media: Built-in 16MB flash memory
Max Recording Time: LP: 180 min.
Input Level: -70dBv
PC Interface: USB
File Folders: 2 audio folders, 100 files per folder
maximum
Sampling Frequency: HQ: 15.5 kHz, SP: 10.3 kHz, LP: 3.9 kHz
Overall Frequency Resp: HQ: 300 ~ 5,800Hz, SP: 300 ~ 4,200Hz, LP:300 ~ 1,600Hz
Voice Activation: Variable Control Voice Actuator
(VCVA), switchable on/off
Speaker: Built-in 23 mm round dynamic speaker
Earphone Jack: 3.5 mm diameter, impedance 8 Ohms
Microphone Sensitivity HI (room monitoring), LO (dictation
recording)
W-10 Image Specifications
Lens: All-glass, 4 elements, IR coated, f2.8, 6.5mm
Images Sensor: 1/4" (.25") VGA C-MOS sensor, 0.3 megapixels
Image Format: JPEG (DCF), 640 x 480 pixels
Max. Image Capacity: 250 images in one image folder
White Balance: Full-auto TTL
Exposure Control Full-auto
Working Range: 32" ~ infinity (0.8 m ~ infinity)
Viewfinder: Real image optical viewfinder
W-10 Other Specifications
Power Supply: Two "AAA" batteries
Battery Life: Audio Recording: approx. 24 hours
Image Shooting: 5,000 or more
Size: 4.7" H x 1.2" W x 0.8" D (119.5 x 29.5 x 19.5 mm)
Weight: 2.5 oz. (70g) including batteries

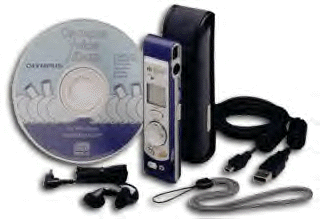

Package Contents
W-10 Digital Recorder
Carrying Case
USB Cable
Wrist Strap
CD-ROM: Voice Album Software
Printed Instruction Manual
Earphones
Warranty Card
